FPA-1000E-P-1072
Data Sheet
<table><tbody><tr><th>Quantity</th><th>Unit Price</th></tr><tr><td>1</td><td>$4195</td></tr><tr><td>2</td><td>$3985</td></tr><tr><td>5</td><td>$3565</td></tr><tr><td>10</td><td>$3356</td></tr><tr><td>25</td><td>$2936</td></tr><tr><td>50</td><td>$1995</td></tr><tr><td>100</td><td>$1887</td></tr></tbody></table>
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Need custom specs? Contact us now for a quote.
<table><tbody><tr><th>Quantity</th><th>Unit Price</th></tr><tr><td>1</td><td>$4195</td></tr><tr><td>2</td><td>$3985</td></tr><tr><td>5</td><td>$3565</td></tr><tr><td>10</td><td>$3356</td></tr><tr><td>25</td><td>$2936</td></tr><tr><td>50</td><td>$1995</td></tr><tr><td>100</td><td>$1887</td></tr></tbody></table>
Description

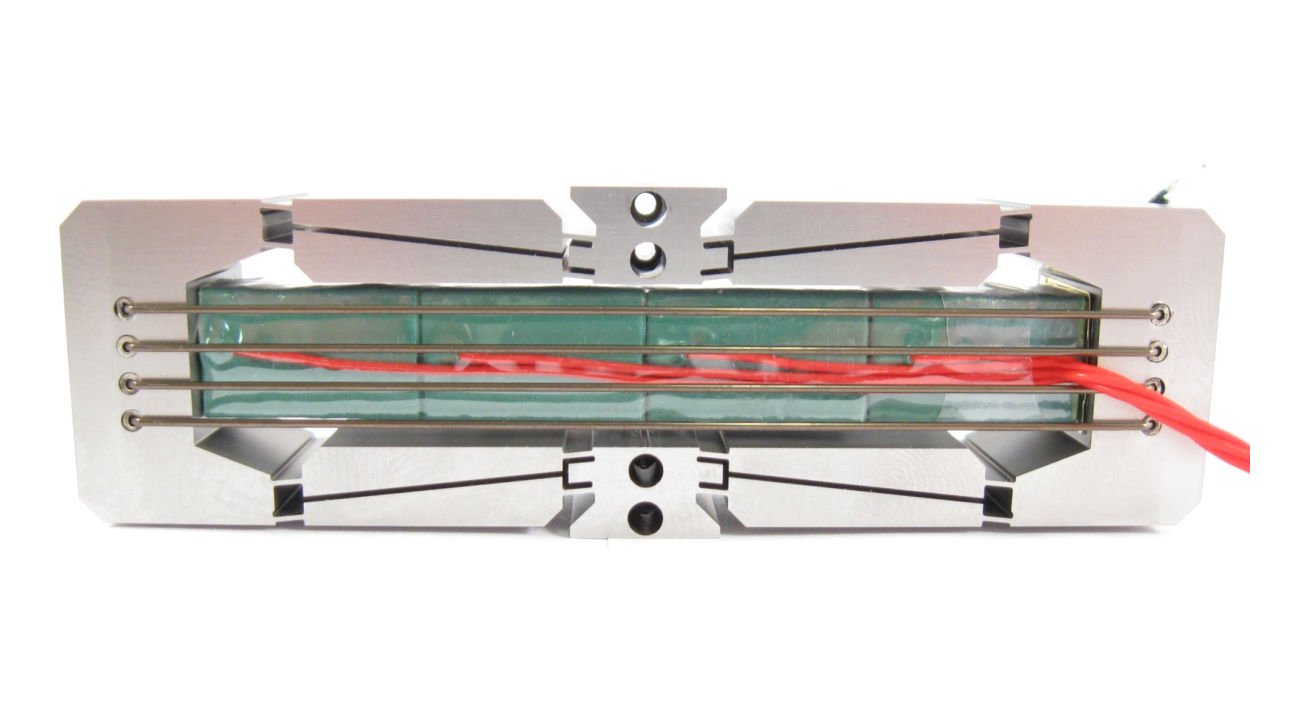

DSM’s FPA is a flexure guided piezoelectric actuator useful for both dynamic and static applications. Custom mounting conditions can be integrated into the design. “E” version actuators expand when they are energized.
Specifications
<table ><tbody><tr><td></td><td></td><td>Units</td></tr><tr><td>Motion Direction</td><td>Expanding</td><td></td></tr><tr><td>Nominal Travel, 0V to 150V</td><td>856</td><td>µm</td></tr><tr><td>Nominal Travel, -30V to 150V</td><td>1070</td><td>µm</td></tr><tr><td>Nominal Stiffness</td><td>0.48</td><td>N/µm</td></tr><tr><td>Unloaded Resonant Frequency</td><td>260</td><td>Hz</td></tr><tr><td>Blocked Force*</td><td>411</td><td>N</td></tr><tr><td>Capacitance</td><td>26.4</td><td>µF</td></tr><tr><td>Material</td><td>Stainless steel</td><td></td></tr><tr><td>Mass**</td><td>223</td><td>g</td></tr><tr><td>Electrical Interface</td><td>Flying leads</td><td></td></tr><tr><td>Mechanical Interface</td><td>Single M5x0.8 on center</td><td></td></tr><tr><td>Height</td><td>28</td><td>mm</td></tr><tr><td>Width</td><td>92</td><td>mm</td></tr><tr><td>Depth</td><td>18</td><td>mm</td></tr></tbody></table>
* Blocked force calculated as Stiffness x Travel Range at 0V to 150V
** Mass stated for reference
Options
- Integrated position sensor
- Vacuum compatibility
- Custom mounting holes
- Custom wire lengths and connectors
- Non-magnetic compatibility
